Standard Features
- Corrosion Resistant Brass Impeller
- Back pullout design for easy Maintenance
- 316 S/S Shaft and Sleeve
- NSK Sealed Bearings
- Ceramic Mechanical Seal
- Marine Grade Paint
- Both Table D & CMC China Flange Patterns for ease of Replacement
Mixed Flow 6HBG-35
Available on backorder
Description
Standard Features
- Corrosion Resistant Brass Impeller
- Back pullout design for easy Maintenance
- 316 S/S Shaft and Sleeve
- NSK Sealed Bearings
- Ceramic Mechanical Seal
- Marine Grade Paint
- Both Table D & CMC China Flange Patterns for ease of Replacement
Pump Specifications
| Max Flow (m3/hour) | 7.1 |
| Max Head (Meters) | 15 |
| Min RPM | 900 |
| Max RPM | 2000 |
| Min Input Power (Kw) | 1 |
| Max Input Power (Kw) | 11 |
| Inlet Size (mm) | 150 |
| Outlet Size (mm) | 150 |
| Housing Construction | Cast Iron |
| Impeller Construction | Brass |
| Shaft Construction | 316 Stainless Steel |
| Seal Type | Ceramic Mechanical |

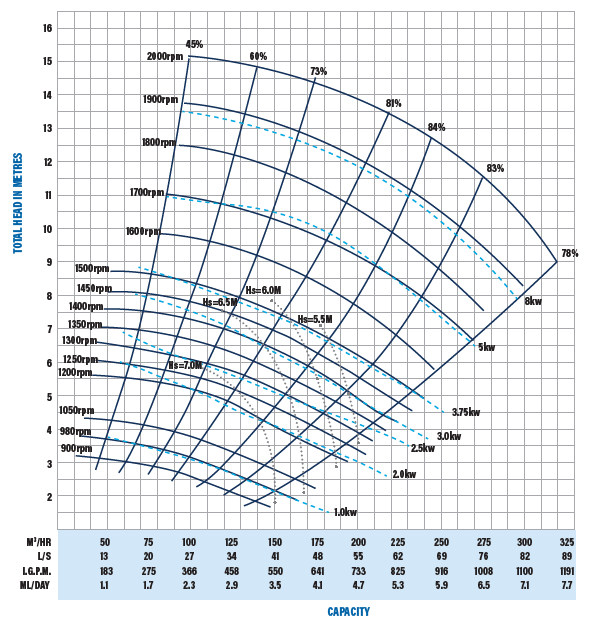

Pump Performance Curve
